UCP 211

Category: Metric Series





(Qty)
  1. Also available with eccentric locking collar.
  2. Medium Duty, Heavy Duty and other available types are described in the Bearing Types information.
  3. Various seal options and plated housing options are described in the Nomenclature and Bearing Types information.

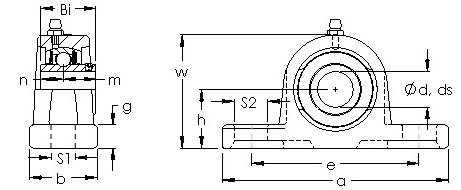

Attributes Values
Bearing Type Extended inner race with set screws
Dynamic Load Rating (Cr) 43337
Static Load Rating (Cor) 29413
Shaft Dia. (Fw) 55.0000
Shaft Height (h) 63.5000
Housing Width (b) 60.0000
Mounting Hole Center-to-Center (e) 171.0000
Housing Length (a) 219.0000
Mounting Slot Length (S2) 22.0000
Mounting Slot Width (S1) 20.0000
Housing Base Thickness (g) 19.0000
Housing Height (w) 125.0000
Bearing Inner Race Width (Bi) 55.6000
Bearing Inner Race Width - Short Side (n) 22.2000
Bearing Inner Race Width - Extended Side (m) 33.4000
Mounting Bolt Size 16.0000
Bearing Number UCP 211
Housing Number P 211
Shaft Dia., Nominal (d) 55.0000
Weight (g) 3719.00
Material Cast iron housing, chrome steel bearing
Additional Information
General
Nomenclature
Material
Closures and Seals
Internal Clearance
Lubrication
Load and Life Calculation Information
The information in AST Bearings herein is provided for informational purposes only. This information should not be relied upon for design, development or other purposes.
Contact AST Bearings for the most current product information as it applies to you and for your product information.
